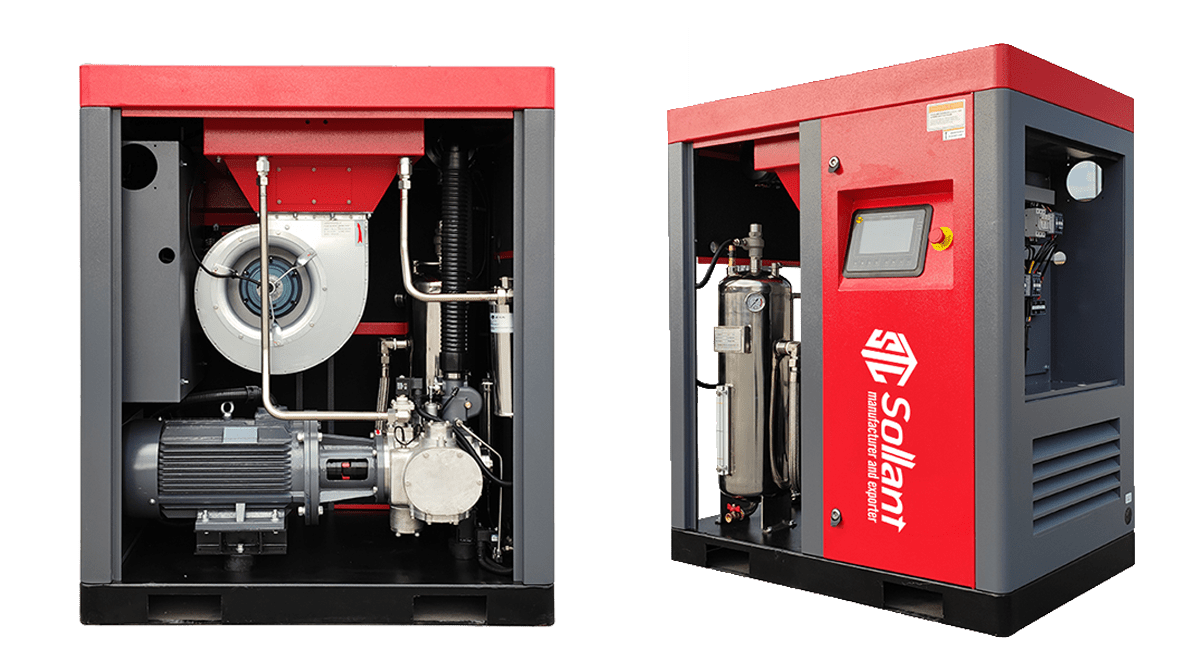

Oil Free Water Injected Air Compressor

Product Name: Water-lubricated Oil-free Air Compressor
Gas Type: Air
Working pressure: 7 – 10bar
Power: 7.5-250Kw
Driven method: Direct driven
Drive method: Variable Speed Drive and Fixed Speed
Weight: 250-4250kg
Warranty: 2 years
Certification: CE/ASME/ISO





Description

The oil-free water-lubricated air compressor uses pure water that meets the drinking water standard as the lubricating medium. There is no lubricating oil component involved in the entire compression system, which ensures that the supply is 100% oil-free clean compressed air.

It is widely used in aerospace, chemical industry, textile, electronics, medicine, food, bottle-blowing cap making, laboratory and other high-end industries with special process requirements.



Features of  Water-Injected Air Compressor


»      Compact structure, high working efficiency, low noise, small vibration, convenient maintenance, low operating cost and good air quality.

»      At the same time, this series of machines adopts a microcomputer control system, and the whole machine is equipped with multiple protection functions such as pressure, temperature and overload.

»      Frequency conversion soft start: Eliminate peak current at start, avoid grid impact, avoid current impact through step-by-step speed adjustment, and improve flexibility.

»      Eliminate no-load: No-load is eliminated during the operation of the compressor, reducing non-consumable energy;

»      High-performance vector control: large starting torque at low frequency and small operating current; reasonable torque can be obtained to drive the air compressor to run smoothly while ensuring the minimum temperature rise of the motor within a wide speed range;

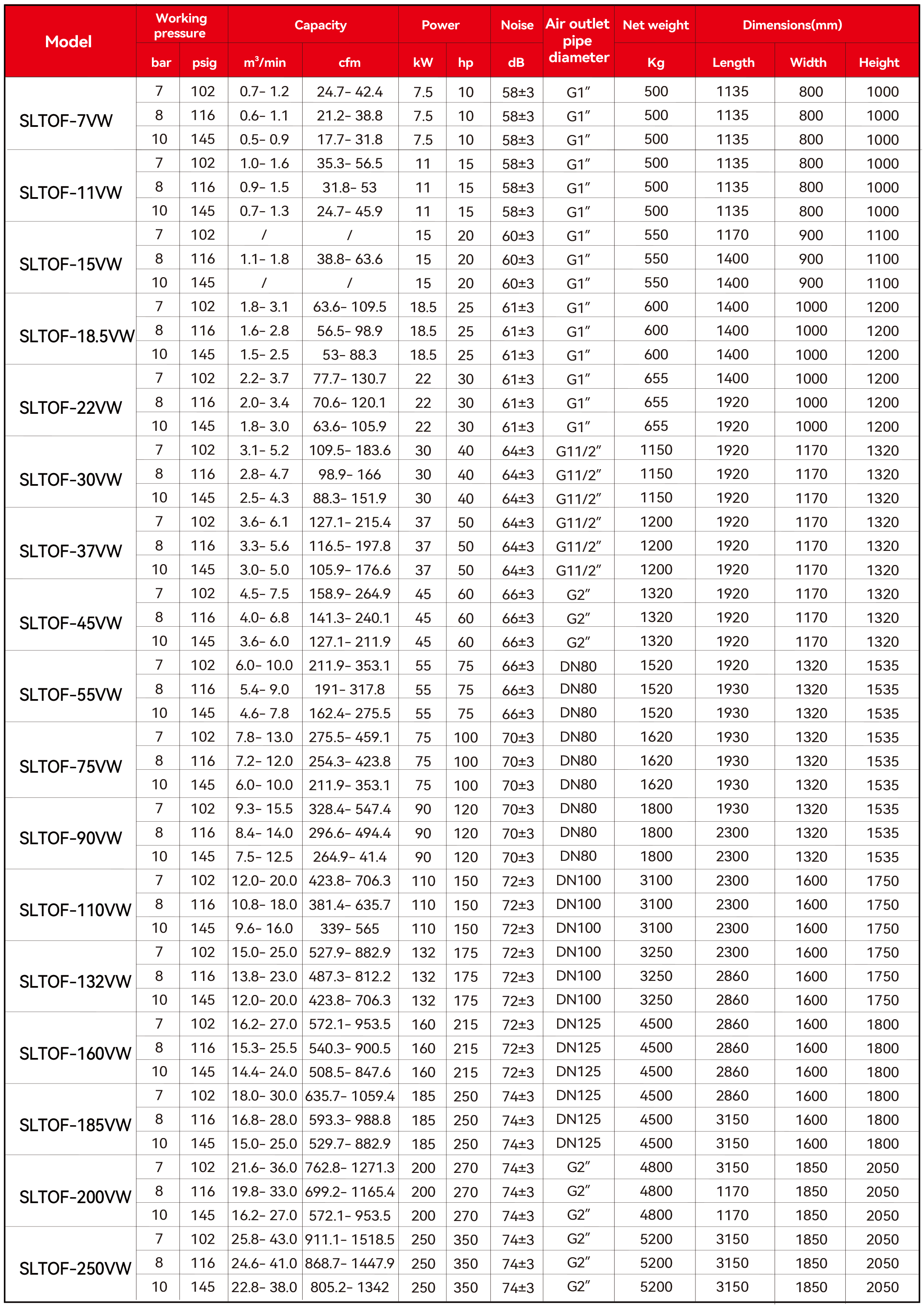

Parameters Table




Water-Injected Air Compressor Video
