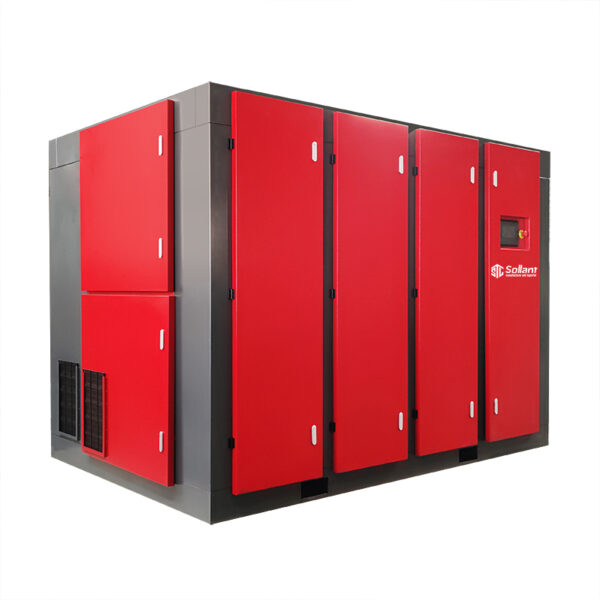

Oil Free Screw Air Compressor
Working pressure: 7-8bar | 102-145psig
Capacity: 3.9-46m3/min | 137-1624cfm
Working Power: 45-250KW
Noise: 69±3 – 74±3
Warranty: 2 years
Certification: CE/ASME/ISO
Color: Optional&customization
Description
What is dry oil-free?
Level 0 oil-free, that is, the total oil content (oil brought in during compression + oil vapor in the air) index reaches ≤0.01mg/m³ ”

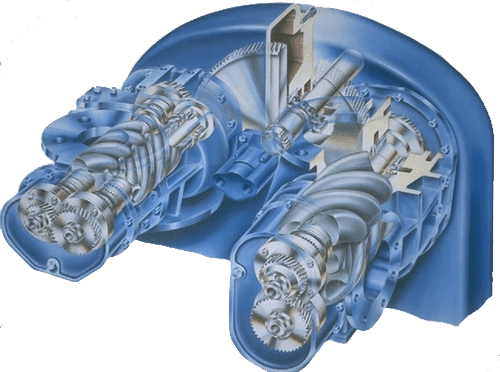

Oil-free” means that the gas is not in contact with oil at all during the compression process, that is, there is no oil lubrication between the compression chamber or the rotor of the compressor, but the bearings, gears and other parts in the compressor are still lubricated with ordinary lubricants. Lubricated in the same way, but between these lubricating parts and the compression chamber, an effective isolation shaft seal is adopted.
Features of oil-free scroll air compressor
- Class 0 oil-free, clean, and oil-free compressed air
- Significant energy-saving, environmental-friendly;
- IE3 motor, save your electricity cost;
- Coupling connection, more energy-saving;
- Multiple noise reduction design;
- Using 304 stainless steel pipe, it will not rust and corrode under high-temperature conditions
- No pollution, environmental protection, no oil, and carbon pollution in the air system
- Low energy consumption, low operating cost
- High efficiency, special profile design of the host. Energy-saving of ordinary motors increased by 30%
- Low noise, product structure adopts the balanced design
- An intelligent control system, reliable software design, and support for multiple languages

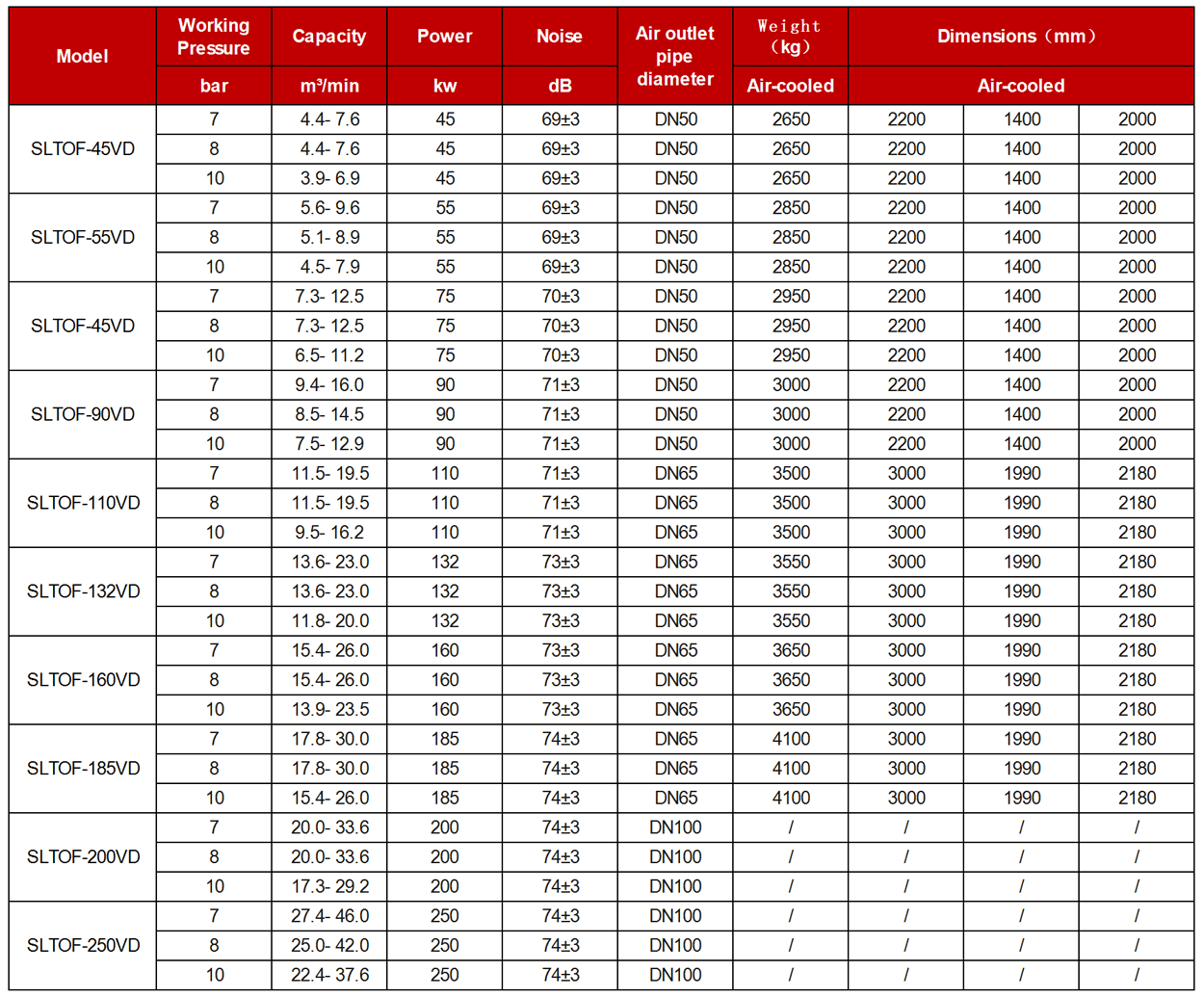

Technical Parameters
