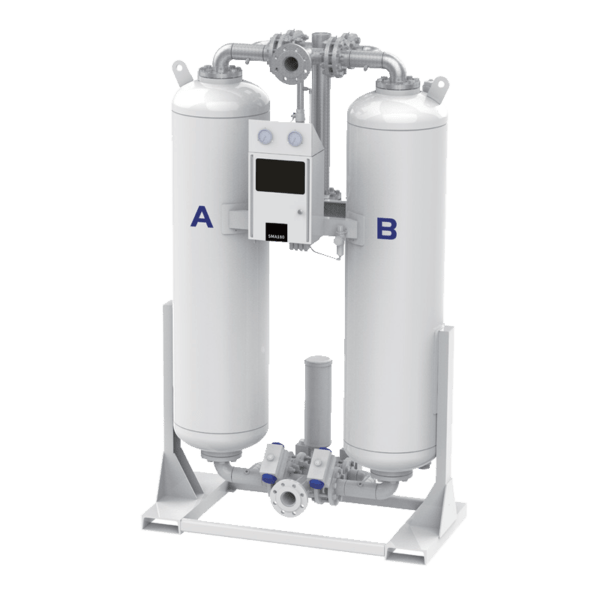

Micro Heat Adsorption Dryer
Regeneration gas volume: ≤7%~11%
Working pressure: 0.6~1.0Mpa
Intake oil content: ≤0.1mg/m³
Pressure dew point: -20℃~-40℃
Desiccant: activated alumina
Working cycle: 2~8 hours
Intake temperature: 0℃~45℃
Description
Is your compressed air clean?
The atmosphere naturally contains several impurities such as dust, various forms of carbon dioxide, hydrogen compounds and water in the form of humidity.
Once sucked into the compressor, these impurities are compressed and sent along the pipeline along with the oil particles. These contaminants interact to produce abrasive and corrosive effects that can cause wear of downstream equipment or form corrosive emulsions.
Sollant has developed a range of premium air solutions to ensure professional air quality. Increase efficiency and productivity and extend the life of equipment and tools. The quality of compressed air is of paramount importance to users. If air laden with contaminants comes into contact with the final product, the cost of rejecting the final product can be unacceptably high, and the cheapest option for producing a product can become prohibitively expensive.
Micro Heat Adsorption Dryer Features
Micro-heat regenerative adsorption dryer is an energy-saving product designed and developed by our company, which has reached the domestic advanced level. This series of products combines the advantages of heat regeneration and heatless regeneration, and adopts the form of slight heating for the regeneration gas, so as to reduce the consumption of regeneration gas and achieve the purpose of energy saving.
It avoids the disadvantage of short switching time of heatless regenerative dryers and also avoids the disadvantage of large power loss of heat absorbing dryers. It is an economical energy-saving adsorption dryer in the purification industry at present and is widely used in metallurgy, electric power, Electronics, food, chemical, petroleum, pharmaceutical, tobacco, instruments, meters, and automatic control industries.
» Features
- Large-sized tower body ensures air flow rate and contact time
- High-performance adsorbent with stable performance and long service life
- Large displacement muffler
- High-temperature protection, pressure switch detection protection, low-density heater
- Stainless steel one-way valve, throttle orifice, air diffuser
- Temperature Butterfly Valve
- Large flow PLC control
Technical Parameters
